CF238

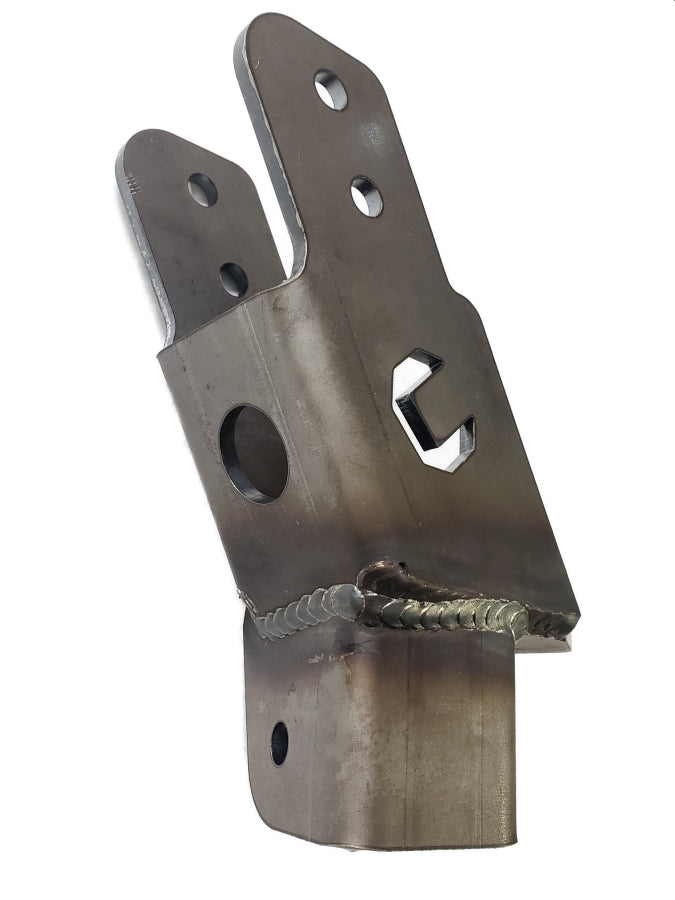

Frame Side Track Bar Bracket - Jeep TJ / LJ

$79.99
/
Shipping calculated at checkout.
Finish
PRODUCT DESCRIPTION

Our heavy-duty track bar bracket incorporates a 2" stretch into the design for greater versatility in application, as it moves the trackbar forward for more clearance for low lift heights. You do not need a stretched wheelbase in order to use this bracket.

FEATURES

  • 1/4" Thick Steel
  • Hardware included
  • OEM track bar bracket must be in tact
  • Drilling (2) 1/2" holes through frame and drilling factory trackbar bracket out to 5/8" required
  • Recommended minimum 2.5" of lift
  • Accepts most joints with 2" Mounting Width and a 1/2" Bolt hole (you can drill this out to accept larger hardware)
  • Maximizes clearance with the front diff by moving the mounting location 2.5" forward
  • Maximizes clearance with a larger axle
  • Fully welded
  • CNC Laser cut and formed in house

Product Specifications

No file available

Assembly Instructions

No file available

Here at CavFab we utilize UPS Ground and USPS Priority shipping. Once your order ships, you’ll receive an email with your shipping details and tracking number. This way, you can follow your order until it arrives at your door. If you have any questions about your shipment, feel free to reach out to us at info@cavfab.com.

What kind of warranty do you offer?

  • CavFab products include a 30-day warranty from delivery, covering manufacturing defects only. This does not cover wear items, improper installation, modified parts, or rust on raw steel. Products must be unpainted and installed within 30 days to remain eligible.

Does this product come with instructions?

  • Most products do not include printed instructions. Installation notes are listed on the product page, and support is available if you need guidance during setup.

Where is this product made?

  • All CavFab products are designed, cut, and assembled in-house in the USA using American-sourced materials.

Have questions about this product? We’re here to help! Whether you need more details, advise on compatibility, or assistance in deciding if this is the right fit for your build, reach out to us. Email us anytime at info@cavfab.com, and our team will get back to you with the answers you need to make your purchase with confidence.
