Alpha Series 3-Link [Full Kit] (XJ)

Be sure to check out our Current Lead Times before purchase.
  • All 1/4" Main Structure High Clearance CrossMember
  • Laser Cut/Press Bent CrossMember
  • Drop Out (Removable) Center Section Crossmember/Skid
    •  8 1/2" Bolts to Remove Drop Out Center
  • High Clearance Lower Links
  • Currie Johnny Joints
  • Includes a machined Currie Johnny Joint (that accepts larger 1/2" bolt) to replace driver side upper axle bushing.
  • 2" OD .25" DOM Wall Lower Links
  • 1.75" OD .120" DOM Wall Upper Link
  • Unibody Tie-Ins Included (No stock mounted x-members here)
  • Included Grade 8 Hardware
  • 100% Bolt On Installation. Works With or Without Frame Stiffeners
  • Compatible with lift heights from 3" - 10"
The Alpha Series 3 Link was designed to be the best 3 link long arm kit on the market for your Jeep XJ or MJ, period. We engineered every aspect of the Alpha Series 3 Link Long Arm kit to be superior to any other kit available. Excellent suspension geometry provides for unmatched performance off-road and amazing street characteristics. If you are looking for a true 3 or 4 link long arm upgrade for your Cherokee or Comanche...this is it.

The CrossMember is constructed of .25" wall T1 DOMEX plate which is CNC cut and then press formed. This kit feature Currie Johnny Joints which are widely known as the best available. The Joints are fully greaseable and 100% rebuildable, they provide unrivaled suspension travel while being very durable over tens of thousands of miles. Our lower links are constructed of 2" x .25" wall DOM tubing and feature a high clearance bend which allows for the utmost ground clearance and tire clearance to prevent tire rub at full steering lock. The upper Arm is constructed of 1.75" x .120" wall DOM and features a fully CNC cut "cup" mount for the axle side upper mount. We also include with this kit (not pictured) a machined Currie Johnny joint which replaces the driver side upper axle bushing and eliminates the weak factory 10mm upper control arm bolt and moves up to a Grade 8 1/2" bolt.

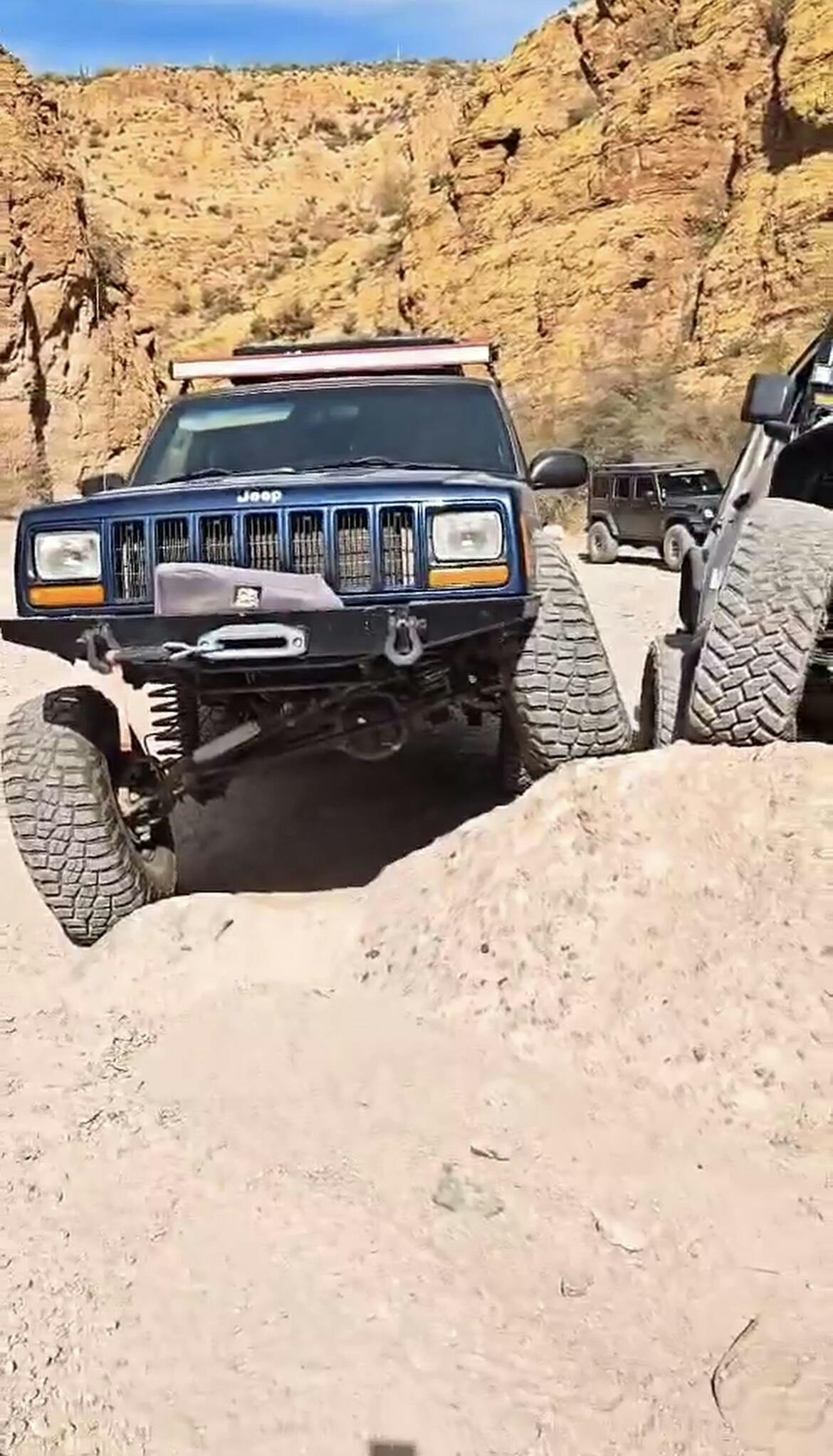

This kit has been proven in the Ultra4 Racing Series under car #4696 and has stood up to the test flawlessly. This is a race proven kit and is the perfect solution from anything to a daily driver, to a full blown trail or race rig. Easy installation, and unmatched engineering make this kit the superior Jeep XJ/MJ Long Arm Upgrade.

*The Alpha 3 Link will ship in raw steel, however powder coating is available*
