Name: Elite Series Body Mounted Spare Tire Carrier - Jeep TJ / LJ
Brand: CavFab
SKU: CF226
Price: 669.99 USD
Availability: InStock
Rating: 5.0 (3 reviews)

CavFab Jeep Wrangler TJ/LJ Elite Rear Tire Carrier

Cavfab Jeep Wrangler license plate relocation bracket

Elite Series Body Mounted Spare Tire Carrier (TJ / LJ) - CavFab

$669.99

Shipping calculated at checkout.

Wheel Bolt Pattern

5x4.5 Bolt Pattern 1/2"-20 Stud (Stock TJ)

5x5 Bolt Pattern 1/2"-20 Stud (JK)

5x5 14mmx1.5 Stud (JL)

8x6.5 Bolt Pattern 9/16"-18 Stud

8x170 Bolt Pattern 14x1.5 Stud

5x5.5 Bolt Pattern 1/2"-20 Stud

License Plate Relocation Bracket

No License Plate Relocation Bracket

Add License Plate Relocation Bracket

[{"id":44660380893436,"title":"5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ) \/ No License Plate Relocation Bracket","option1":"5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ)","option2":"No License Plate Relocation Bracket","option3":null,"sku":"CF226","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ) \/ No License Plate Relocation Bracket","public_title":"5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ) \/ No License Plate Relocation Bracket","options":["5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ)","No License Plate Relocation Bracket"],"price":66999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44660380926204,"title":"5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ) \/ Add License Plate Relocation Bracket","option1":"5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ)","option2":"Add License Plate Relocation Bracket","option3":null,"sku":"CF227","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ) \/ Add License Plate Relocation Bracket","public_title":"5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ) \/ Add License Plate Relocation Bracket","options":["5x4.5 Bolt Pattern 1\/2\"-20 Stud (Stock TJ)","Add License Plate Relocation Bracket"],"price":73999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44660375322876,"title":"5x5 Bolt Pattern 1\/2\"-20 Stud (JK) \/ No License Plate Relocation Bracket","option1":"5x5 Bolt Pattern 1\/2\"-20 Stud (JK)","option2":"No License Plate Relocation Bracket","option3":null,"sku":"CF228","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 5x5 Bolt Pattern 1\/2\"-20 Stud (JK) \/ No License Plate Relocation Bracket","public_title":"5x5 Bolt Pattern 1\/2\"-20 Stud (JK) \/ No License Plate Relocation Bracket","options":["5x5 Bolt Pattern 1\/2\"-20 Stud (JK)","No License Plate Relocation Bracket"],"price":66999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44660375355644,"title":"5x5 Bolt Pattern 1\/2\"-20 Stud (JK) \/ Add License Plate Relocation Bracket","option1":"5x5 Bolt Pattern 1\/2\"-20 Stud (JK)","option2":"Add License Plate Relocation Bracket","option3":null,"sku":"CF229","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 5x5 Bolt Pattern 1\/2\"-20 Stud (JK) \/ Add License Plate Relocation Bracket","public_title":"5x5 Bolt Pattern 1\/2\"-20 Stud (JK) \/ Add License Plate Relocation Bracket","options":["5x5 Bolt Pattern 1\/2\"-20 Stud (JK)","Add License Plate Relocation Bracket"],"price":73999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44677876875516,"title":"5x5 14mmx1.5 Stud (JL) \/ No License Plate Relocation Bracket","option1":"5x5 14mmx1.5 Stud (JL)","option2":"No License Plate Relocation Bracket","option3":null,"sku":"CF230","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 5x5 14mmx1.5 Stud (JL) \/ No License Plate Relocation Bracket","public_title":"5x5 14mmx1.5 Stud (JL) \/ No License Plate Relocation Bracket","options":["5x5 14mmx1.5 Stud (JL)","No License Plate Relocation Bracket"],"price":66999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44677876908284,"title":"5x5 14mmx1.5 Stud (JL) \/ Add License Plate Relocation Bracket","option1":"5x5 14mmx1.5 Stud (JL)","option2":"Add License Plate Relocation Bracket","option3":null,"sku":"CF231","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 5x5 14mmx1.5 Stud (JL) \/ Add License Plate Relocation Bracket","public_title":"5x5 14mmx1.5 Stud (JL) \/ Add License Plate Relocation Bracket","options":["5x5 14mmx1.5 Stud (JL)","Add License Plate Relocation Bracket"],"price":73999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44660375388412,"title":"8x6.5 Bolt Pattern 9\/16\"-18 Stud \/ No License Plate Relocation Bracket","option1":"8x6.5 Bolt Pattern 9\/16\"-18 Stud","option2":"No License Plate Relocation Bracket","option3":null,"sku":"CF232","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 8x6.5 Bolt Pattern 9\/16\"-18 Stud \/ No License Plate Relocation Bracket","public_title":"8x6.5 Bolt Pattern 9\/16\"-18 Stud \/ No License Plate Relocation Bracket","options":["8x6.5 Bolt Pattern 9\/16\"-18 Stud","No License Plate Relocation Bracket"],"price":66999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44660375421180,"title":"8x6.5 Bolt Pattern 9\/16\"-18 Stud \/ Add License Plate Relocation Bracket","option1":"8x6.5 Bolt Pattern 9\/16\"-18 Stud","option2":"Add License Plate Relocation Bracket","option3":null,"sku":"CF233","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 8x6.5 Bolt Pattern 9\/16\"-18 Stud \/ Add License Plate Relocation Bracket","public_title":"8x6.5 Bolt Pattern 9\/16\"-18 Stud \/ Add License Plate Relocation Bracket","options":["8x6.5 Bolt Pattern 9\/16\"-18 Stud","Add License Plate Relocation Bracket"],"price":73999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44660375453948,"title":"8x170 Bolt Pattern 14x1.5 Stud \/ No License Plate Relocation Bracket","option1":"8x170 Bolt Pattern 14x1.5 Stud","option2":"No License Plate Relocation Bracket","option3":null,"sku":"CF234","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 8x170 Bolt Pattern 14x1.5 Stud \/ No License Plate Relocation Bracket","public_title":"8x170 Bolt Pattern 14x1.5 Stud \/ No License Plate Relocation Bracket","options":["8x170 Bolt Pattern 14x1.5 Stud","No License Plate Relocation Bracket"],"price":66999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44660375486716,"title":"8x170 Bolt Pattern 14x1.5 Stud \/ Add License Plate Relocation Bracket","option1":"8x170 Bolt Pattern 14x1.5 Stud","option2":"Add License Plate Relocation Bracket","option3":null,"sku":"CF235","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 8x170 Bolt Pattern 14x1.5 Stud \/ Add License Plate Relocation Bracket","public_title":"8x170 Bolt Pattern 14x1.5 Stud \/ Add License Plate Relocation Bracket","options":["8x170 Bolt Pattern 14x1.5 Stud","Add License Plate Relocation Bracket"],"price":73999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48146151178492,"title":"5x5.5 Bolt Pattern 1\/2\"-20  Stud \/ No License Plate Relocation Bracket","option1":"5x5.5 Bolt Pattern 1\/2\"-20  Stud","option2":"No License Plate Relocation Bracket","option3":null,"sku":"CF408","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 5x5.5 Bolt Pattern 1\/2\"-20  Stud \/ No License Plate Relocation Bracket","public_title":"5x5.5 Bolt Pattern 1\/2\"-20  Stud \/ No License Plate Relocation Bracket","options":["5x5.5 Bolt Pattern 1\/2\"-20  Stud","No License Plate Relocation Bracket"],"price":66999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48146151211260,"title":"5x5.5 Bolt Pattern 1\/2\"-20  Stud \/ Add License Plate Relocation Bracket","option1":"5x5.5 Bolt Pattern 1\/2\"-20  Stud","option2":"Add License Plate Relocation Bracket","option3":null,"sku":"CF409","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Elite Series Body Mounted Spare Tire Carrier - Jeep TJ \/ LJ - 5x5.5 Bolt Pattern 1\/2\"-20  Stud \/ Add License Plate Relocation Bracket","public_title":"5x5.5 Bolt Pattern 1\/2\"-20  Stud \/ Add License Plate Relocation Bracket","options":["5x5.5 Bolt Pattern 1\/2\"-20  Stud","Add License Plate Relocation Bracket"],"price":73999,"weight":31751,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

CavFab Elite Series Body-Mounted Spare Tire Carrier - Jeep TJ / LJ

A body-mounted spare tire carrier built for 1997-2006 Jeep Wrangler TJ and LJ models. Constructed from laser-cut 3/16", 1/4", and 3/8" American steel, the Elite Series is engineered to support up to a 42" spare tire with an adjustable tire position and additional cage tie-in for increased support.

FITMENT AT A GLANCE

1997 - 2006 Jeep Wrangler TJ / LJ
Multiple wheel bolt-pattern options available
Designed for use with the included cage tie-in
Direct bolt-on installation in most applications

IMPORTANT FITMENT NOTE: This carrier will not fit with the factory taillight position. Taillight modification or aftermarket lighting is required.

CHOOSE THE CORRECT CONFIGURATION

5x4.5 / 1/2"-20: stock TJ axle pattern
5x5 / 1/2"-20: JK axle pattern
5x5 / 14mm x 1.5: JL axle pattern
5x5.5 / 1/2"-20: commonly used with Ford-pattern axle swaps
8x6.5 and 8x170: available for compatible 1-ton axle swaps
License plate relocation: available as an optional configuration

WHY CAVFAB

Tire Capacity	Up to 42"
Construction	CNC laser-cut and formed 3/16", 1/4", and 3/8" American steel
Hinges	Oilite bronze bushings for maintenance-free operation
Tire Position	Adjustable approximately 4" vertically
Additional Support	Cage tie-in included
Manufacturing	Designed, engineered, tested, and built in the USA

FEATURES

Supports up to a 42" spare tire
Adjustable tire mount for different tire sizes and rear-window visibility
Additional cage tie-in for increased support
Can be used with the stock bumper
Optional license plate relocation bracket available
Ships in raw steel
All required mounting hardware included

WHAT'S INCLUDED

TJ / LJ Elite Series body-mounted spare tire carrier kit
Cage tie-in
All mounting hardware
License plate relocation bracket when selected

IMPORTANT INSTALLATION NOTES

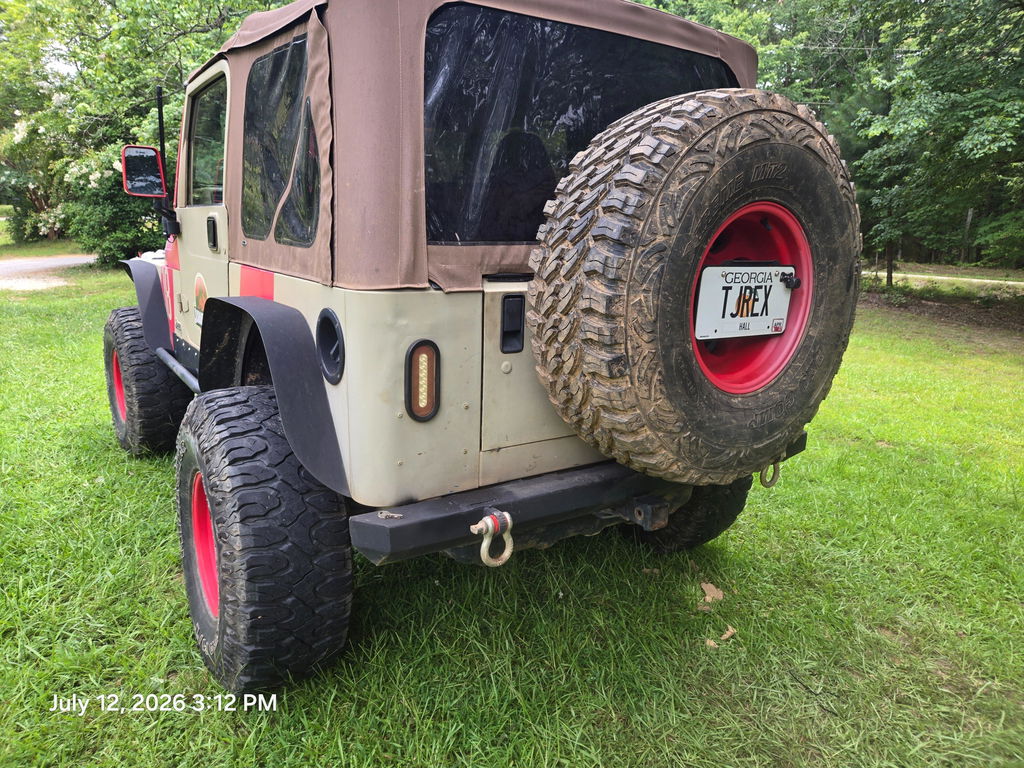

Factory taillight placement interferes with this carrier. Modifications or aftermarket taillights are required.
Some TJ/LJ models have weld-in nuts at the upper hinge. These may need to be removed to use the included tie-in.
If you have a non-stock cage, the tie-in should fit only if the cage remains in approximately the factory position. A cage positioned farther from the tailgate may prevent the tie-in from fitting.
For tires larger than 37", CavFab recommends using rear corner armor for additional support.

Not sure about bolt pattern, cage position, taillight clearance, or whether your build needs corner armor? Contact CavFab before ordering and we’ll help verify the configuration.

Product Specifications

No file available

Assembly Instructions

No file available

Here at CavFab we utilize UPS Ground and USPS Priority shipping. Once your order ships, you’ll receive an email with your shipping details and tracking number. This way, you can follow your order until it arrives at your door. If you have any questions about your shipment, feel free to reach out to us at info@cavfab.com.

What kind of warranty do you offer?

CavFab products include a 30-day warranty from delivery, covering manufacturing defects only. This does not cover wear items, improper installation, modified parts, or rust on raw steel. Products must be unpainted and installed within 30 days to remain eligible.

Does this product come with instructions?

Most products do not include printed instructions. Installation notes are listed on the product page, and support is available if you need guidance during setup.

Where is this product made?

All CavFab products are designed, cut, and assembled in-house in the USA using American-sourced materials.

Have questions about this product? We’re here to help! Whether you need more details, advise on compatibility, or assistance in deciding if this is the right fit for your build, reach out to us. Email us anytime at info@cavfab.com, and our team will get back to you with the answers you need to make your purchase with confidence.
