CF306

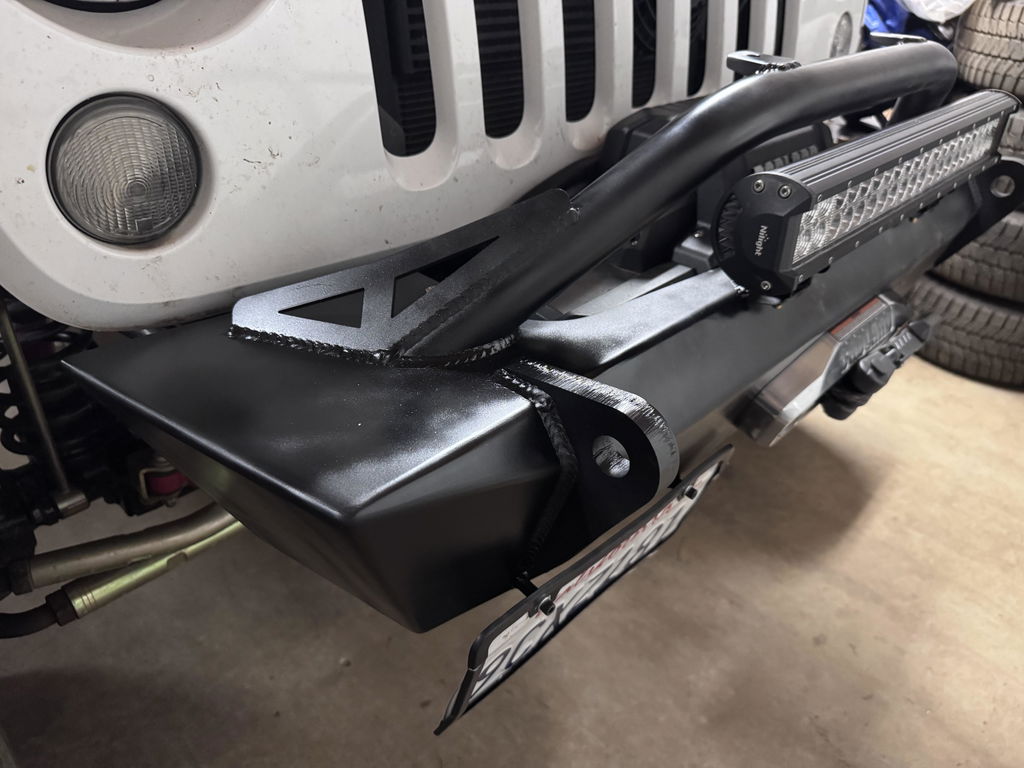

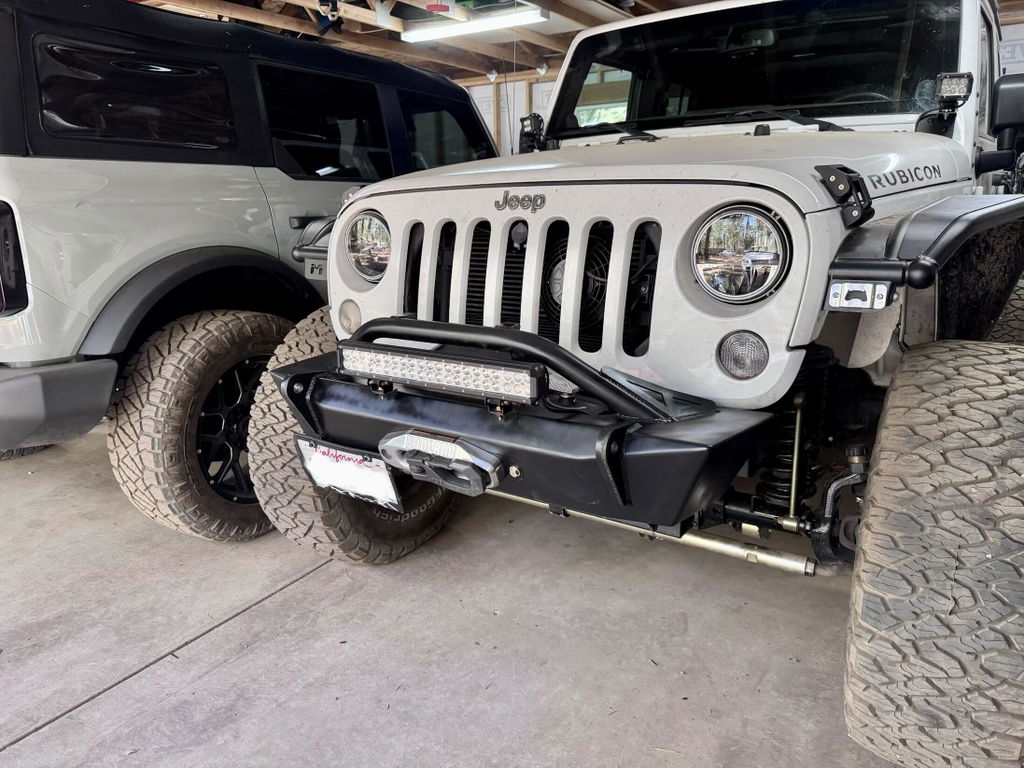

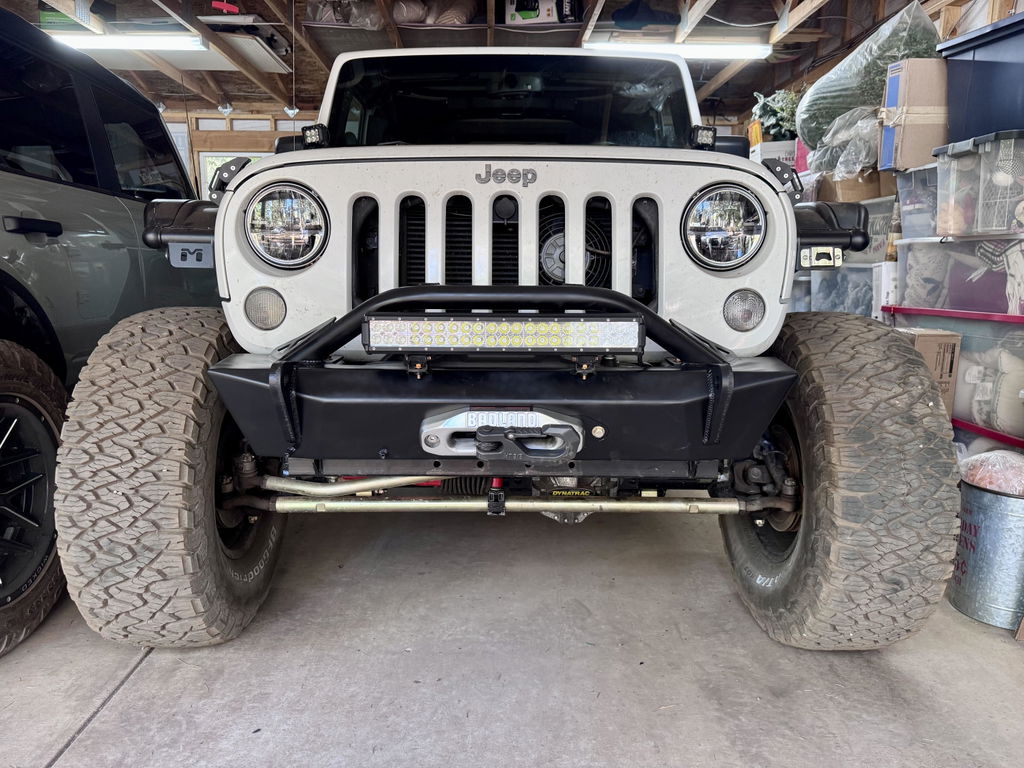

PRODUCT DESCRIPTIONThe CavFab JK Predator Front Winch Bumper is crafted from 3/16" American steel, laser-cut, press-formed, and welded in the USA. Its two-piece design features a separate winch tray and bumper shell, allowing for easy bolt-on installation. The recessed winch mount improves airflow to the radiator, unlike top-mounted designs that block the grille, ensuring optimal performance on and off the trail.
This is a front bumper only. For a complete front and rear upgrade, pair it with a Predator or Crawler Series rear bumper from the JK bumper lineup.
Installation is bolt-on with no drilling. You will need to relocate the factory vacuum pump and remove its mounting bracket to clear the winch tray, this typically adds 30 to 60 minutes to the install if you're doing it yourself. The bumper ships in raw steel, plan your coating (paint, powder coat, or bed liner) before mounting.
VEHICLE FITMENT- 2007 - 2017 Jeep Wrangler JK and JKU (2 Door and 4 Door)
FEATURES-
Direct Bolt On Installation (No Drilling. However relocation of the factory vacuum pump is required. Along with removing the vacuum pump bracket.)
-
2 Piece Design (Winch Tray & Bumper Shell) for Easy Installation and Easy Winch Maintenance
-
3/16" American Steel
-
CNC Laser Cut & Formed
-
Recessed Winch Mount for Optimal Air Flow and Clean Look
- Compatible with most offset drum and center aligned Winches due to rotatable winch plate
- Made in U.S.A.
- Ships Raw Steel
WHATS INCLUDED
- JK Predator Series Front Bumper
- Mounting Hardware
NOTES
- Grey JL features the "Winch Guard" Tube Option
- Yellow JL features the "Winch Guard" Tube Option
- Red JK features the "Pre Runner" Tube Option
- Orange JL features the "Flat Top Stinger" Tube Option
Product Specifications
No file availableAssembly Instructions
No file availableHere at CavFab we utilize UPS Ground and USPS Priority shipping. Once your order ships, you’ll receive an email with your shipping details and tracking number. This way, you can follow your order until it arrives at your door. If you have any questions about your shipment, feel free to reach out to us at info@cavfab.com.
Frequently Asked Questions
The No Tube version features a clean bumper profile with no tubing above the bumper shell. The Winch Guard Hoop adds a protective bar above the winch area, while the Pre-Runner Hoop is the tallest option and provides additional space for mounting auxiliary lights above the winch.
In most cases, yes. The adjustable winch plate is designed to accommodate both offset-drum and centre-aligned winches, making it compatible with a wide range of brands and models. If you're unsure about your specific winch, contact us with the model information and we'll confirm fitment before you order.
No. The vacuum pump relocation simply creates the clearance needed for the winch tray installation. It involves relocating the bracket and hose routing only and does not affect braking performance or other vehicle systems.
The No Tube version weighs approximately 65 lbs, the Winch Guard Hoop version weighs 70 lbs, and the Pre-Runner Hoop version weighs 75 lbs. Be sure to account for bumper and winch weight when planning suspension setup and shipping logistics.
Yes. A matching Predator Series Front Bumper Skid Plate is available separately and is compatible with all three tube configurations.
