CavFab Elite Series Body-Mounted Spare Tire Carrier - Jeep TJ / LJ

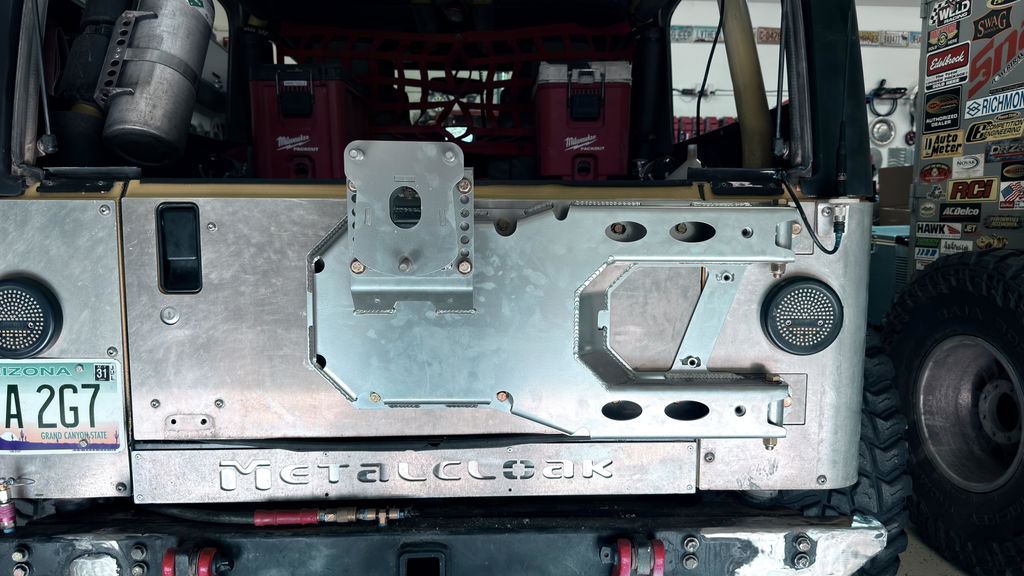

A body-mounted spare tire carrier built for 1997-2006 Jeep Wrangler TJ and LJ models. Constructed from laser-cut 3/16", 1/4", and 3/8" American steel, the Elite Series is engineered to support up to a 42" spare tire with an adjustable tire position and additional cage tie-in for increased support.

FITMENT AT A GLANCE

1997 - 2006 Jeep Wrangler TJ / LJ
Multiple wheel bolt-pattern options available
Designed for use with the included cage tie-in
Direct bolt-on installation in most applications

IMPORTANT FITMENT NOTE: This carrier will not fit with the factory taillight position. Taillight modification or aftermarket lighting is required.

CHOOSE THE CORRECT CONFIGURATION

5x4.5 / 1/2"-20: stock TJ axle pattern
5x5 / 1/2"-20: JK axle pattern
5x5 / 14mm x 1.5: JL axle pattern
5x5.5 / 1/2"-20: commonly used with Ford-pattern axle swaps
8x6.5 and 8x170: available for compatible 1-ton axle swaps
License plate relocation: available as an optional configuration

WHY CAVFAB

Tire Capacity	Up to 42"
Construction	CNC laser-cut and formed 3/16", 1/4", and 3/8" American steel
Hinges	Oilite bronze bushings for maintenance-free operation
Tire Position	Adjustable approximately 4" vertically
Additional Support	Cage tie-in included
Manufacturing	Designed, engineered, tested, and built in the USA

FEATURES

Supports up to a 42" spare tire
Adjustable tire mount for different tire sizes and rear-window visibility
Additional cage tie-in for increased support
Can be used with the stock bumper
Optional license plate relocation bracket available
Ships in raw steel
All required mounting hardware included

WHAT'S INCLUDED

TJ / LJ Elite Series body-mounted spare tire carrier kit
Cage tie-in
All mounting hardware
License plate relocation bracket when selected

IMPORTANT INSTALLATION NOTES

Factory taillight placement interferes with this carrier. Modifications or aftermarket taillights are required.
Some TJ/LJ models have weld-in nuts at the upper hinge. These may need to be removed to use the included tie-in.
If you have a non-stock cage, the tie-in should fit only if the cage remains in approximately the factory position. A cage positioned farther from the tailgate may prevent the tie-in from fitting.
For tires larger than 37", CavFab recommends using rear corner armor for additional support.

Not sure about bolt pattern, cage position, taillight clearance, or whether your build needs corner armor? Contact CavFab before ordering and we’ll help verify the configuration.

Product Specifications

No file available

Assembly Instructions

No file available

Here at CavFab we utilize UPS Ground and USPS Priority shipping. Once your order ships, you’ll receive an email with your shipping details and tracking number. This way, you can follow your order until it arrives at your door. If you have any questions about your shipment, feel free to reach out to us at info@cavfab.com.

Frequently Asked Questions

No. The carrier's position interferes with the factory taillight location, so factory taillights must be modified or replaced with aftermarket alternatives for proper fitment.

Select the bolt pattern based on your axle, not necessarily your Jeep's model year, since axle swaps are common. Stock TJ axles use 5x4.5, JK axles use 5x5 with 1/2"-20 studs, JL axles use 5x5 with 14mm x 1.5 studs, and additional options are available for common swap axles including 5x5.5, 8x6.5, and 8x170. If you're unsure which axle you have, send us the axle information and we'll verify fitment before you order.

This carrier is designed to support tires up to 42 inches. For tire sizes larger than 37 inches, we recommend adding rear corner armor for additional strength and support.

Possibly. Some TJ and LJ models have weld-in nuts at the upper hinge location that must be removed. The tie-in is compatible with most aftermarket cages that remain close to the factory position, but cages mounted farther from the tailgate may not align correctly.

The license plate relocation bracket is offered as an option during checkout. Standalone availability for the TJ/LJ version may vary. Contact us with your order number and we'll review the available options for your specific order.
