Over the Axle (OTA) Track Bar System - Jeep XJ / MJ / ZJ
$349.99
PRODUCT DESCRIPTION
The CavFab OTA Track Bar System relocates your Jeep’s track bar to the top of the axle, optimizing steering geometry for both UTK (under the knuckle) and OTK (over the knuckle) setups. Ideal steering requires a flat drag link angle parallel to the track bar, and our system offers two mounting orientations to maintain near-perfect alignment. Compatible with other steering brands, this system is engineered to perform best with the CavFab Crossover Steering System. Available as a standalone upgrade or bundled with our Crossover Steering for a complete solution.
VEHICLE FITMENT
1984 - 2001 Jeep Cherokee XJ
1986 - 1992 Jeep Comanche MJ
1993 - 1998 Jeep Grand Cherokee ZJ
FEATURES
1.5" SOLID 1045 Steel OTA Bar
Double Adjustable OTA Bar

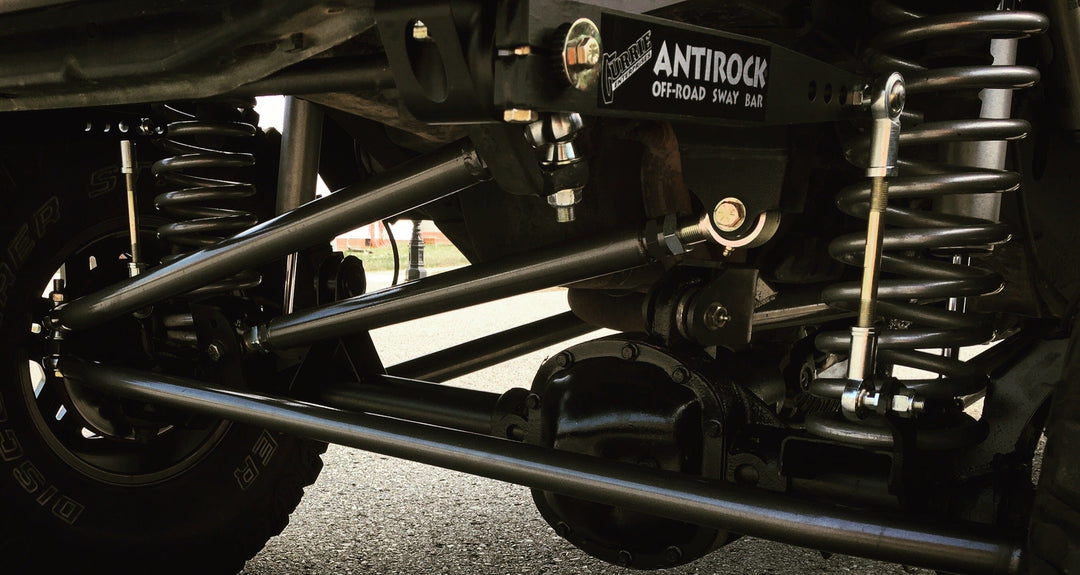

Chromoly Heim Joints on Both Ends (Second picture does not reflect this)
CNC Laser Cut Axle and Frame Bracket made from 1/4" American Steel
Includes Weld On Axle Side bracket (requires welding) and Bolt on Frame Side Double Sheer Bracket (comes welded)
Engineered to allow steering to be ran either Over or Under the knuckle. Two mounting locations on the axle side bracket allows you to dial in your steering geometry

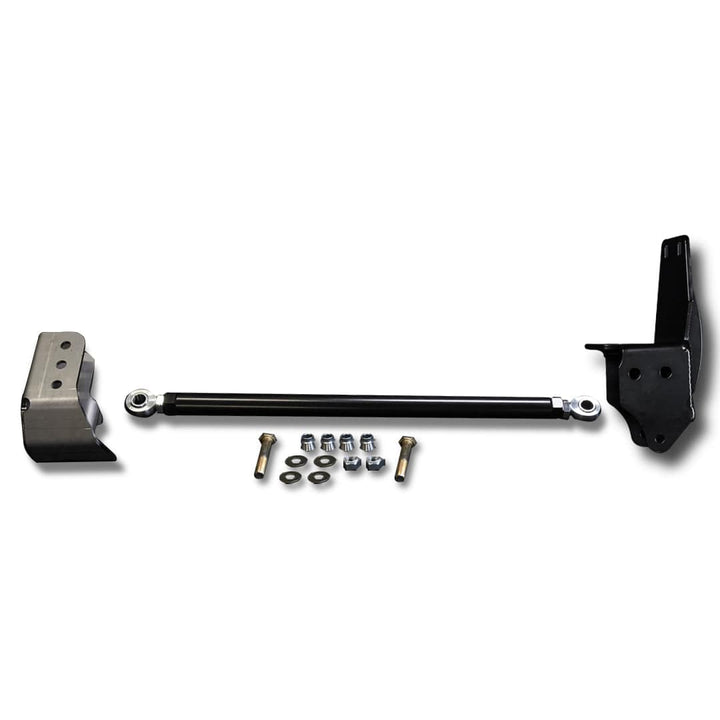

WHATS INCLUDED
(1) 1045 Solid Steel Track Bar Rod
(1) 3/4 x 3/4 Right Hand Chromoly Heim
(1) 3/4 x 3/4 Left Hand Chromoly Heim
(1) 3/4 Right Hand Jam Nut
(1) 3/4 Left Hand Jam Nut
(2) 3/4" to 1/2" High Misalignment Spacers (Frame Side)
(2) 3/4" to 9/16" High Misalignment Spacers (Axle Side)
(1) Axle Side Bracket (requires welding - comes raw steel with either finish option)
(1) Frame Side Bracket
Mounting Hardware
NOTES
Works on 3" Lift and up. Lifts under 4.5" may require extended bumpstops to prevent track bar from contacting diff cover
Older jeeps with vacuum disconnect axle are not compatible
When Black Powder Coat Option is selected the OTA rod and Frame Bracket will come powder coated, since the axle mount requires welding it will be raw steel
